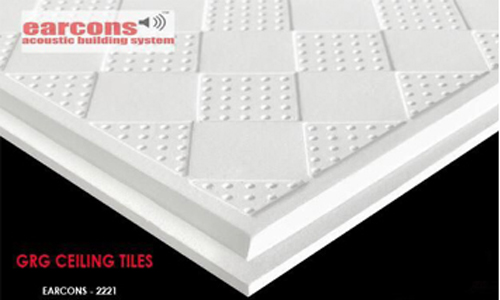

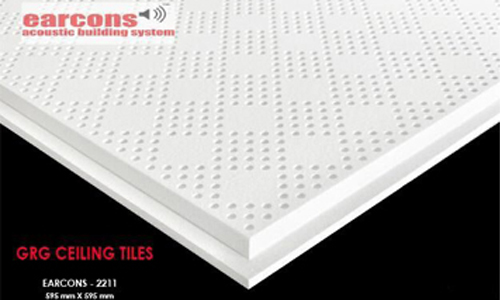

Earcons GRG Ceiling Tile
Overview of Product
Earcons GRG (Glass Reinforced Gypsum) Ceiling Tiles, a concept to achieve optimum creativity & functionality. Glassfiber Reinforced Gypsum is developed to allow Architects and Designers to incorporate complex or simple elements that lead to and exciting dimension to interior spaces. A composition of high strength gypsum reinforced with glassfibers, it is factory molded into any shape or size. The Gypsum Plaster used for making GRG Ceiling Tiles confirms to standard ASTM C28 / C28M. GRG Ceiling tile have certified humidity resistance (RH) of 99 % as per the test standard ASTM C47303 / ASTM C 139604. Grg Tiles are non combustible confirming to Non Combustibility protocol. Our Full process of manufacturing confirms to IS 2095(Part 3) 1996.
Product Features
Earcons GRG Tiles are moisture resistant and strong under high humid conditions
• Durable
• Fire Resistant
• Superior Thermal Insulation
• Excellent Light Reflectance
• Re-paintable
• Good Sound Absorbing Properties
• Perfect Designs and Finish
• Easy to Install & Clean
Application
It is widely used in environment has high sound absorption requirement, such as: Multiplexes, Auditorium, Lecture Hall, Home Theatre ,Gymnasium, Library, School, Hospital, Office building, Shopping centre, IT Sector, Airports, Hotels, Recording Studio, Courts, Conference Hall, Educational, Lecturer Hall, Offices, BPO's etc. With its high sound absorption features, it effectively improves the quality of people's working and living, influence people's psychological and physical well beings. It is a high class and novel suspended ceiling products.
Properties
| Material : | Glass Reinforced Fiber |
| Surface : | Moisture Resistant Paint |
| Thickness : | 10,12 mm |
| Sizes : | 595mm x 595mm |
| Light Reflectance : | 0.75-0.85 (Certified) |
| Fire Resistance : | BS 476P-4 1970 (Certified) |
| Humidity Resistance : | 99% |
Technical Peformance
Surface Spread- Class 1 - BS 476 Part 7 Specific optical density of smoke- Flaming Exposure 26.28 Dm (Corr)-ASTM E 66 Thermal conductivity- 0.08Wm/k- IS 3346 Non-combustibility- Mass loss 53% @ 750¡ÆC - ISO 1182 ignitibility- 'P' - BS 476 Part 5 Fire propagation Index-5.17- BS 476 Part 6 Properties
Installation
Earcons GRG Ceiling is installed as a lay-in tile in Earcons Grid T 24 /T15 / Silhouette T framework for suspended modular ceilings. Tiles can be easily dismantled for services work & reinstall.
