Metal Ceiling Tile

Overview of Product

Earcons ceiling system range that is designed to provide solutions for all installation situations. With its diverse design concepts it suits not only new building projects but can also be used with confidence in the framework of renovation and refurbishment projects. The metal tiles provide particularly good acoustics by virtue of the different surface perforations that also contribute to the overall design pattern on the tiles. Earcons Lay-On system of metal ceiling tiles and panels form an integral part of the company's range of metal ceiling systems. The fully demountable tiles and panels are available in a range of sizes, edge profiles and perforation patterns; they are manufactured from steel or aluminum finished with high polyester paint offer a comprehensive range of colours to BS and RAL standards. Tiles and panels are suitable for internal applications and used with mineral wool pads satisfy a wide range of thermal and acoustical parameters. The tiles can be installed in several different ways: Metal System. (1) - Lay On (2)- Clip On

(3)- Linear Strip Clip on The necessary suspension sections and components are all available from the Earcons for example hangers, main runner sections, cross sections, wall trims and wall springs etc.

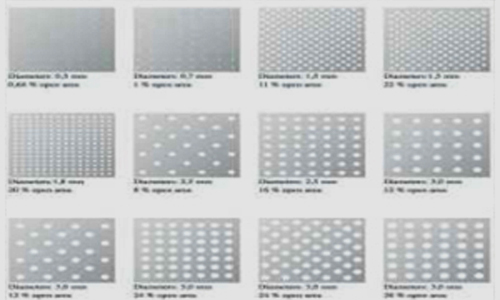

Perforation Patterns

Earcons tiles are available with various different surface perforation patterns from large holes to the very finest micro -perforations (0.7-2.4 mm straight holes). These facilitate the optimization of reverberation times to suit the acoustics and design requirements of areas.

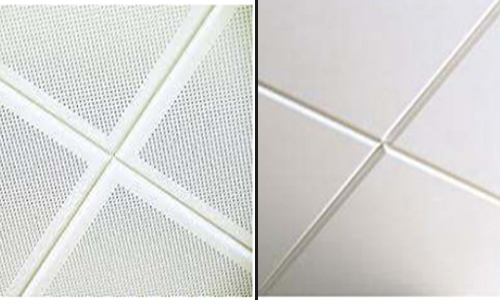

Clip In Tile

This tried and tested system is probably the most widely used metal tile ceiling system. The tiles, manufactured to fine press tool tolerances, are clipped into a concealed Tee Bar grid. Tiles are automatically levelled in the grid by special registers, which are pressed into the side flanges of the tiles during manufacture. The grid system is easily installed and tiles can be removed and replaced for access to services. Modular or circular light fitting and grilles can be integrated within the Clip-In System, and various acoustic criteria can be met with the inclusion of acoustic inlays.

(1)- Clip In Plain (2) - Clip In Perforation

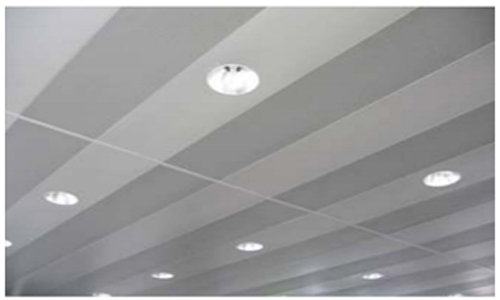

Linear Ceiling

Linear Beam Grid system provides a high specification solution for office environments. The beam sections are arranged in one direction to create a linear ceiling effect, and are used to support the ceiling panels, light fittings and partition tracks.Beams can be produced in a variety of widths, and the tiles are generally supplied 100,200, 300mm wide to lengths as required. Tiles can be produced with a square edge detail (with or without gasket) or with bevelled edges to long sides, and can be hinged from the beam if necessary. Application (1)- Linear Plain Ceiling (2)- Linear Perforated Ceiling

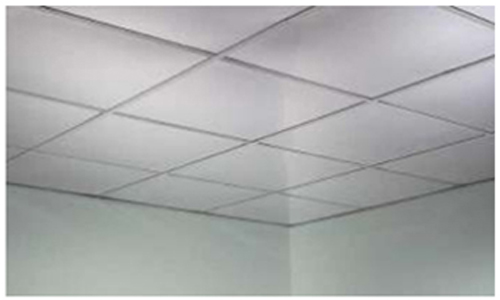

Lay In Tile

The term lay-in refers to tiles that have minimal tile face coverage by the supporting exposed grid as distinct from lay-on tiles where the face of the tile is fully visible. Lay-in tiles are used with exposed grid table usually 24/15mm wide although different grid table widths are available. (1)- Lay In Plain (2)- Lay In Perforated

Technical Properties

Thickness :	0.5 -0.7 mm
Edge :	Square, Tapper
Surface :	Plain, Perforation
Fire Class :	Class A
Sizes :	600x600/1200, 100/200/300 x1200
NRC :	0.75
Density :	980 Kg/m3
Fire Class :	Class A
Climate :	99 RH
Weight :	3-6 Kg/m2
Light Reflection :	78 %

Application

The wide application spectrum comprises of such areas: Auditorium, Multiplex, Library, Hotels, Indoor stadiums, Meeting halls, Hospitals, Educational, Industrial, Loppy, Airports , Office Area etc.
